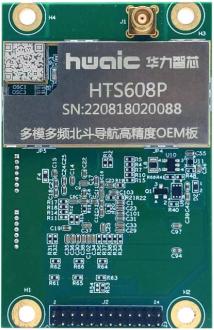

Multi-mode and multi-frequency GNSS navigation high-precision OEM board is a high performance GNSS multi-mode,multi-frequency high-precision OEM positioning board. Based on the design of HTG001, the Beidou-3 navigation baseband chip of Hwa Create, it fully supports BD2, BD3, GPS, GLONASS, Galileo, and QZSS multi-system full-frequency signal format, has multi-frequency anti-jamming technology, and adopts the multi-mode and multi-frequency enhanced RTK solution engine independently developed by HwaCreate, which can effectively improve RTK measurement accuracy and reliability in complex environments such as urban blocks, shades and slopes.

Features

lSupport BDS/GPS/GLONASS/GALILEO/QZSS full-system full-frequency signal system and Beidou No.3 signal system

lSupport independent acquisition and tracking of satellite frequency

lHave the function of receiving differential information for RTD and RTK positioning

lSupport multi-system and multi-frequency signal original observation and message data output

lSupport 3 COM output, and optionally support USB and SPI data interfaces

lSupport open application processor (Cortex-A53/main frequency 600MHz) for customized development by users

Technical parameter

Application area

The module is compact in size and low in power consumption, and can be widely used in various high-precision applications such as surveying and mapping, safety monitoring, precision agriculture, unmanned aerial vehicles, etc.
