ARINC664 signal switcher is a high-performance, multi-channel real-time multi-channel signal switching equipment, which supports real-time switching of 8-channel ARINC664 signals. It is a necessary intelligent signal switching equipment for ARINC664 complex bus network simulation, test and verification.

Feature

·Support ARINC664 signal switching.

·Support 100M Ethernet signal switching.

·Support signal switching function of one out of 8 groups by single device completes. Achieve function of either-or signal switching in 8 groups by single device.

· Provide groups of data acquisition interfaces, each group includes 1 uplink data acquisition interface and 1 downlink data acquisition interface.

·Support non-delay, dynamic, real-time signal switching, switching equipment without power interruption.

·Support sending switching instructions through Ethernet

·Provide 2 LED indicators for each channel to display the current line switching status

·Support the function of switching configuration memory, the last saved configuration will be loaded automatically when the switching device is powered on

·Support batch switching or single channel switching

·Provide secondary development interface library

·Provide switcher supporting software

Application

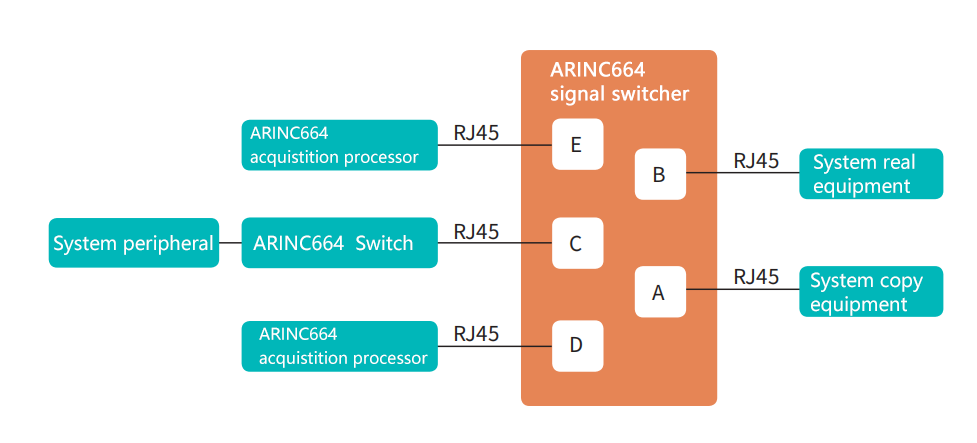

ChannelC can be connected to ChannelA or ChannelB through the switch. ChannelD collects the information sent by ChannelA or ChannelB, and ChannelE collects the information sent by ChannelA or ChannelB.

Technical Parameters

Order information
